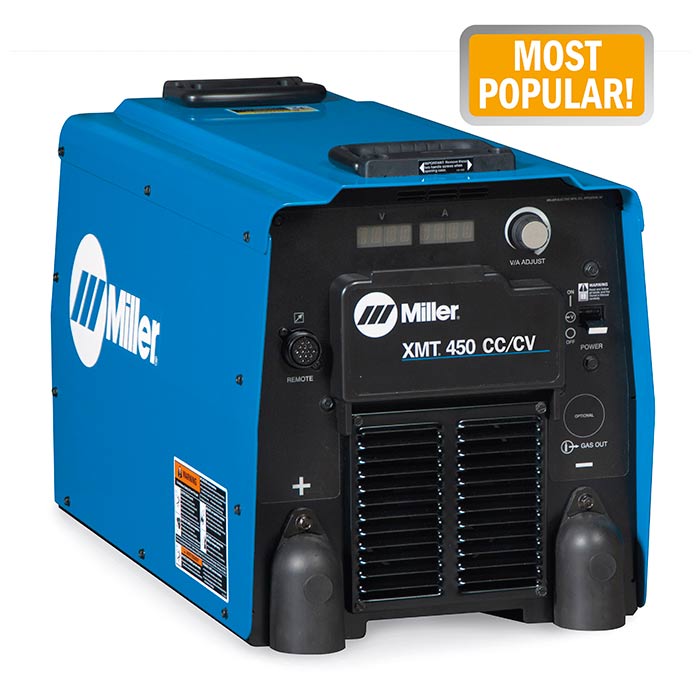

XMT 450 CC/CV 230/460V MULTIPROCESS MILLER WELDER
Heavy Industrial Applications
– Construction
– Shipbuilding
– Railroad
– Truck/trailer manufacturing
– Fabrication
– Repair shops
– Rental fleets
– Power generation plants
| Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 450 CC/CV is the most popular model for its flexibility and simplicity. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)/Pulsed MIG (GMAW-P)*
Stick (SMAW) TIG (GTAW) Flux-cored (FCAW) Air carbon arc cutting and gouging (CAC-A) Rated: 5/16-inch carbons Capable: 3/8-inch carbons *Available on select models. |
|
| Input Power | 230/460 V or 575 V Requires 3-phase power |
|
| Amperage Range | 10–38 V, 15– 600 A | |
| Rated Output | 450 A at 38 VDC, 100% duty cycle | |
| Max. Open-circuit Voltage | 90 VDC | |
| Net Weight | 55.3 Kg | |
| Dimensions (H x W x D) | 438 x 368 x 689 mm | |
Warranty: 3 years
