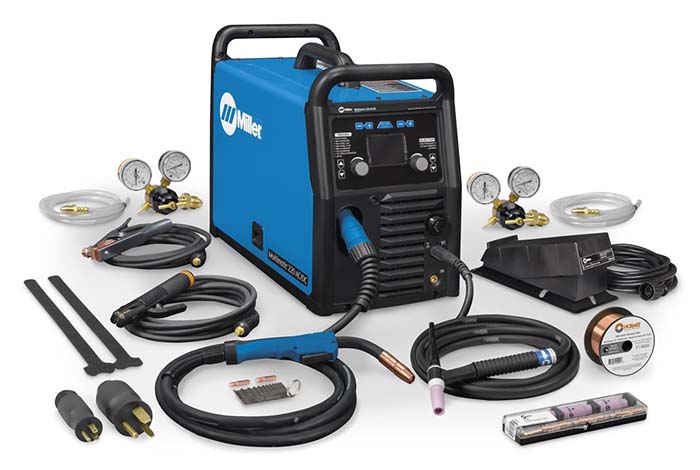

MULTIMATIC® 220 AC/DC MULTIPROCESS MILLER WELDER
Industrial Applications
– Light fabrication
– Maintenance and repair
– Auto body
– Farm / home
| Gives you the freedom to weld any process including AC/DC TIG, MIG, flux-cored, and stick with one portable, powerful, easy to use machine. Setup and switching processes are fast and easy, all while ensuring excellent arc quality using either 120 or 240 volt power. Welds up to 3/8" (MIG and Stick) or 1/4" (TIG). |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Flux-cored (FCAW) AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) DC stick (SMAW) |
|
| Input Power | 120/240 V, 1-phase, 50/60 Hz | |
| Amperage Range | MIG: 30–230 A AC/DC TIG: 20–210 A DC stick: 30–200 A |
|
| Rated Output | MIG/flux-cored: 200 A at 24 V, 20% duty cycle 170 A at 21.5 V, 40% duty cycle TIG: 210 A at 18.4 V, 20% duty cycle Stick: 200 A at 28.4 V, 15% duty cycle |
|
| Wire Feed Speed | 60– 600 ipm (1.5–15.2 m/min.) | |
| Max. Open-circuit Voltage | Mig: 45 VDC Tig/Stick: 46 VDC |
|
| Net Weight | 25.4 Kg | |
| Dimensions (H x W x D) | 445 x 286 x 546 mm | |
Warranty: 3 years
