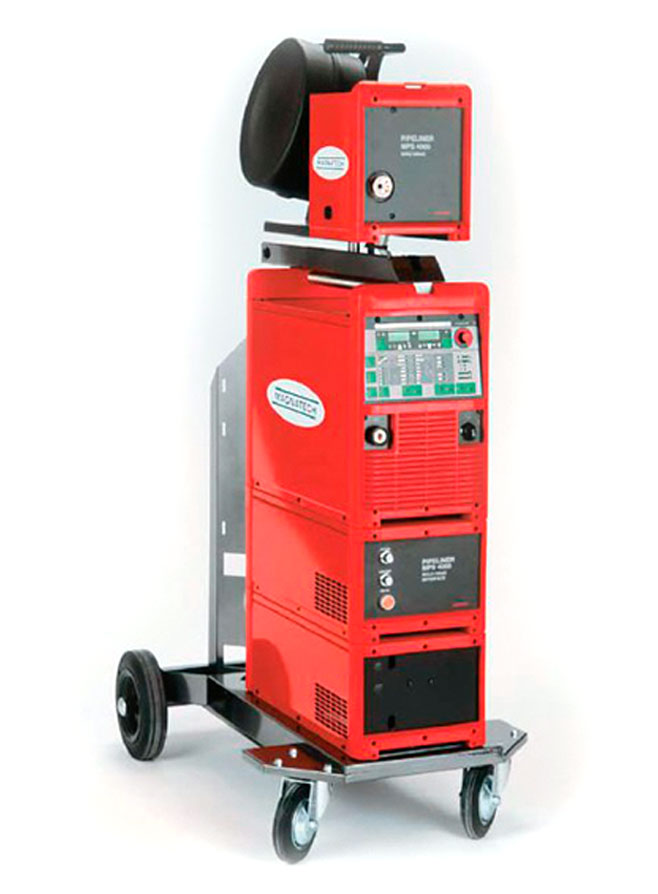

PIPELINER MPS 4000 MAGNATECH ORBITAL WELDING MACHINE POWER SOURCE
– Fossil and nuclear power plant construction
– Steam generation equipment fabrication
– Gas and oil pipeline construction
– Marine pipeline construction
– Chemical/petrochemical facility construction andmaintenance
– Large diameter vessel fabrication
– Shipyard Construction
The MPS 4000 is a digital inverter power source for GMAW/FCAW process welding applications. The integral weld head controller operates all Pipeliner weld head models. The MPS 4000 provides synergic control of electrode speed and power output – the welder has only to change electrode speed and the power supply will adaptively change the output parameters to maintain a stable process.
| Technical Specifications | ||
|---|---|---|
| Output rating | 400 A 50% duty cycle, 320 A 100% duty cycle | |
| Max. open circuit voltage | 70 V | |
| Input power | 200/230/400/460 V, 50/60 Hz | |
| Degree of protection | IP23 | |
| Type of cooling | AF (forced Air) | |
| Wire diameter | 0.8 – 1.6 mm | |
| Wire feed speed | 0.5 – 22 m/min | |
