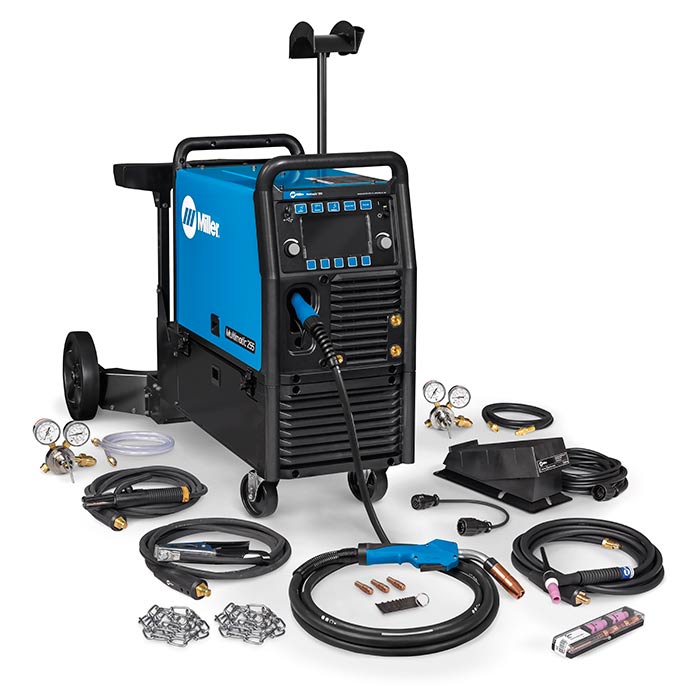

MULTIMATIC® 255 MULTIPROCESS MILLER WELDER
Industrial Applications
– Contract welding services
– Plant maintenance shops
– General fabricators
| Built for professionals in the MRO and light manufacturing/fabrication segments who want a smaller, versatile multiprocess welder with intuitive setup to increase efficiencies and productivity. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Pulsed MIG (GMAW-P) Flux-cored (FCAW) DC stick (SMAW) DC Lift-Arc™ TIG (GTAW) Pulsed TIG (GTAW-P) |
|
| Input Power | Auto-Line™ 208–575 V, 1 phase | |
| Rated Output | MIG: 230 A at 25.5 V, 60% duty cycle Stick: 200 A at 28 V, 60% duty cycle TIG: 275 A at 21 V, 60% duty cycle |
|
| Amperage range | 5–350 A | |
| Wire Feed Speed | 50–800 ipm (1.3–20 m/min.) | |
| Max. Open-circuit Voltage | 81 VDC | |
| Net Weight | 38 Kg | |
| Dimensions (H x W x D) | 489 x 349 x 616 mm | |
Warranty: 3 years
