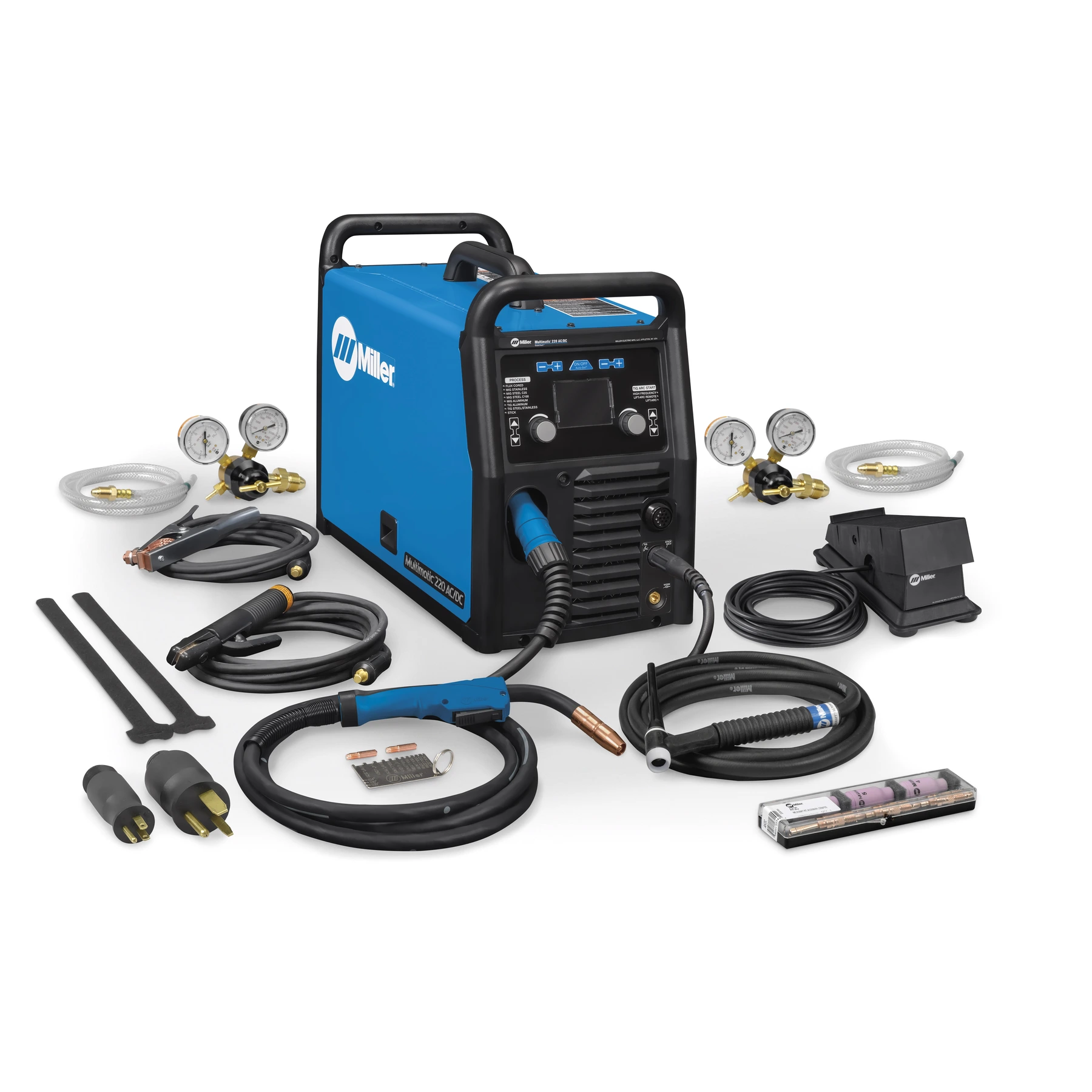

MULTIMATIC® 220 AC/DC MULTIPROCESS MILLER WELDING MACHINE
About The Multimatic® 220 AC/DC
120-240 V multiprocess welder. Welds mild steel up to 3/8 in. thick. Gives you the freedom to weld any process including MIG, flux-cored, stick and AC/DC TIG with one portable, powerful, easy to use machine.
| Technical Specifications | ||
|---|---|---|
| Processes | MIG (GMAW) Flux-cored (FCAW) AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) DC stick (SMAW) | |
| Industrial Applications |
| |
| Input Power | 120/240 V, 1-phase, 50/60 Hz | |
| Amperage Range | MIG: 30–230 A AC/DC TIG: 20–210 A DC stick: 30–200 A | |
| Rated Output | MIG/flux-cored: 200 A at 24 V, 20% duty cycle 170 A at 21.5 V, 40% duty cycle TIG: 210 A at 18.4 V, 20% duty cycle Stick: 200 A at 28.4 V, 15% duty cycle | |
| Wire Feed Speed | 60– 600 ipm (1.5–15.2 m/min.) | |
| Max. Open-circuit Voltage | Mig: 45 VDC Tig/Stick: 46 VDC | |
| Net Weight | 25.4 Kg | |
| Dimensions (H x W x D) | 445 x 286 x 546 mm | |
Features
| All in One Take on more projects with one machine that has MIG, Stick, AC and DC TIG. | QuickTech™ Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used. | 14-Pin Controlled Operator Alternatives The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control. | Weighing Only 56 Pounds The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more. |
| Dependable Arc Starts Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time. | 6010 Stick Electrode Capability Superior Stick arc performance even on the difficult-to-run electrodes like E6010. | Auto-Set™ Technology Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels. | Generator Compatible Will be able to operate and provide full output when powered by an engine-driven welder with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators. |
| Multi-voltage plug (MVP™) Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord. | Pro-Set™ Feature This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters. |
- Warranty: 3 years
