MULTIMATIC 215 MUTLPROCESS MILLER WELDER
Light Industrial Applications
– Light fabrication
– Maintenance and repair
– Auto body
– Farm/home
| Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW) |
|
| Input Power | 120 or 240 V, 1 phase, 50/60 Hz | |
| Ampersge Range | MIG/flux-cored: 30–230 A TIG: 20–210 A Stick*: 30–200 A |
|
| Rated Output | MIG/flux-cored: 200 A at 24 V, 20% duty cycle 150 A at 21.5 V, 40% duty cycle TIG: 190 A at 17.6 V, 20% duty cycle Stick*: 190 A at 27.6 V, 20% duty cycle |
|
| Wire Feed Speed | 60– 600 ipm (1.5–15.2 m/min.) | |
| Max. Open-circuit Voltage | 58 VDC | |
| Net Weight | 17.2 Kg | |
| Dimensions (H x W x D) | 318 x 286 x 521 mm | |
* Not recommended for 6010 electrodes

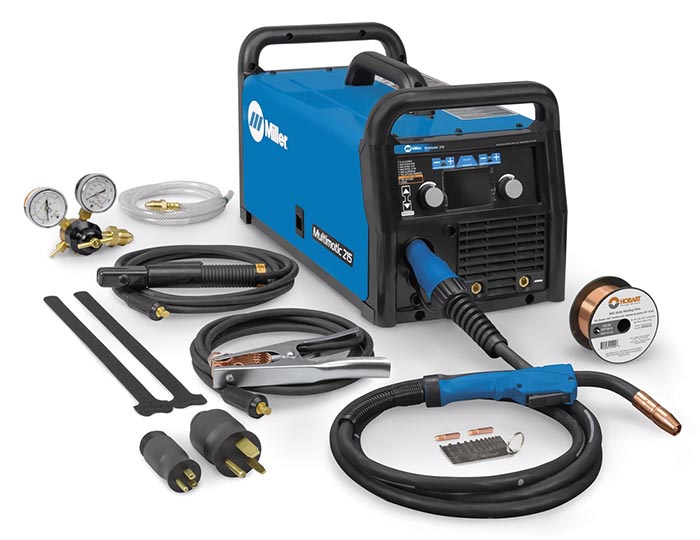

Complete included:
-Power source
- 10 ft. (3 m) MDX™-100 MIG gun
- 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
- 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
- 6.5 ft. (2 m) power cord with MVP™ plugs for 120 V and 240 V
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- Hobart® spool of .030 in. (0.8 mm) solid wire
- Two contact tips for .030 in. (0.8 mm) wire
- Quick Select™ drive roll for .024 in.(0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in.(0.8/0.9 mm) flux-cored wire
- Material thickness gauge
Warrantied: 3 years
