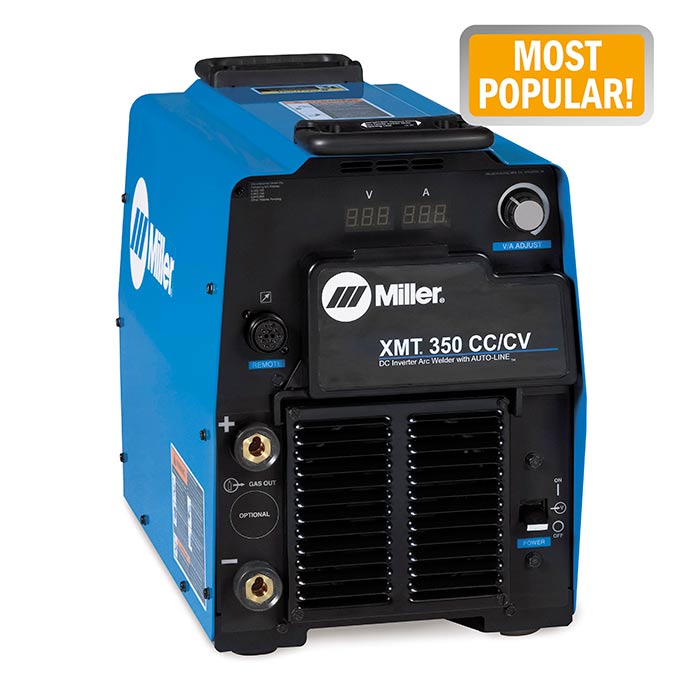

XMT 350 CC/CV, DINSE MULTIPROCESS WELDER
Heavy Industrial Applications
– Construction
– Shipbuilding
– Railroad
– Truck/trailer manufacturing
– Fabrication
– Repair shops
– Rental fleets
– Power generation plants
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)/Pulsed MIG (GMAW-P)*
Stick (SMAW) TIG (GTAW) Flux-cored (FCAW) Air carbon arc cutting and gouging (CAC-A) Rated: 1/4-inch carbons Capable: 5/16-inch carbons *Available on select models. |
|
| Input Power | Auto-Line™, 208–575 V, requires 3- or 1-phase power | |
| Amperage Range | 10–38 V, 15–425 A | |
| Rated Output | 3 phase: 350 A at 34 VDC, 60% duty cycle 1 phase: 300 A at 32 VDC, 60% duty cycle |
|
| Max. Open-circuit Voltage | 75 VDC | |
| Net Weight | 36.3 Kg | |
| Dimensions (H x W x D) | 432 x 318 x 610 mm | |
Warranty: 3 years
