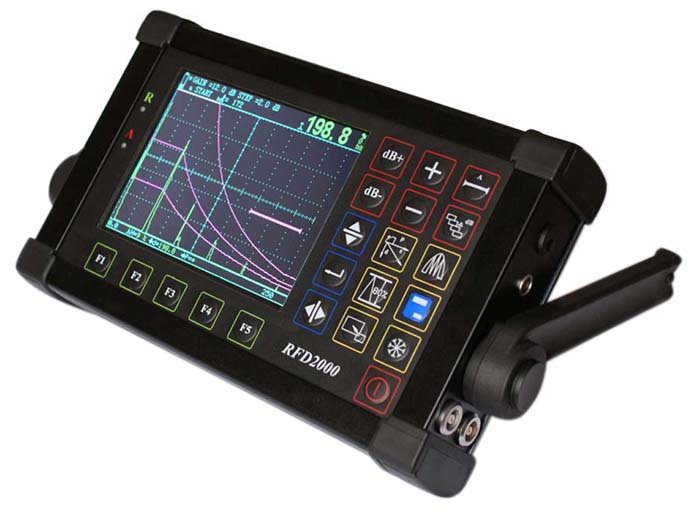

ULTRASONIC TEST FOR WELDING RFD-2000
- Automated display precise flaw location.
- Automated switch three staff gauge .
- Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity.
- Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated.
- Ten independence setup, any criterion can be input freely, we can work in the scene without test block.
| Technical Specifications | |
| Measuring Range | 0-1000 mm |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.2% |
| Sensitivity Leavings | ≥62dB |
| Frequency Range | 0.5 - 20 Mhz |
| Gain | 0 - 110 dB |
| Operating Temperature | -20 - 50 |
| Dimensions HxWxD | 240×150×50 mm |
| Net Weight | 1.6 Kg |
Complete set:
- Power adapter 1.5A/9V
- Prode connecting cable 2
- Carrying case
- Instruction manual
