STUD LONGRUN WELDING MACHINE – MODEL : 3000JK
– Optimized to weld the bolt, pin on metal instantly without drilling, punching and tapping
– Suitable for using at shipbuilding yard, plant and construction works by Φ6~Φ25 stud welding

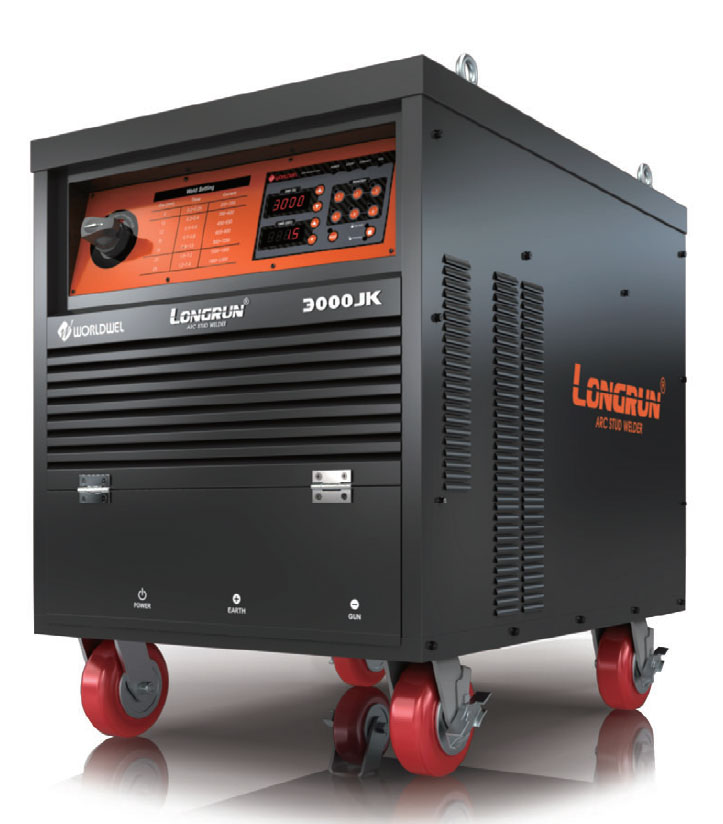

Styd Welding Machine model 3000JK
| Technical Specifications | |
|
Input Power (V, PH) |
220/380/440, 3 phase |
| Stud Diameter (Φ) | 6~25 |
| Current Range (A) | 100~3000 |
| Weld Time Range (s) | 0.2-1.4 |
| Net Weight (Kg) | 530 |
| Dimensions (mm) | 705 x 995 x 1035 |
- Optimized to weld the bolt, pin on metal instantly
without drilling, punching and tapping - Suitable for using at shipbuilding yard, plant and
construction works by Φ6~Φ25 stud welding
