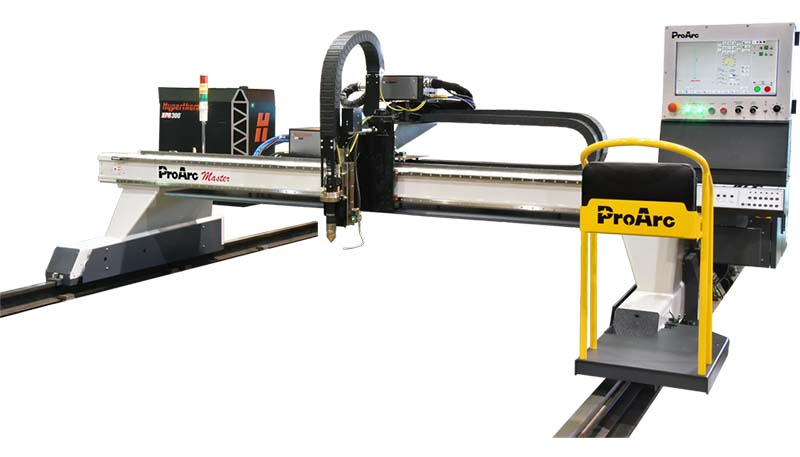

PROARC MASTER HIGH PRECISION CNC CUTTING MACHINE
Master is designed to be a reliable, cost-effective machine in streamline appearance for high performance cutting requirements.
It is equipped with advanced CNC controller, stable servo drive system, double linear way…. to ensure the accuracy.
The rigid structure with heat treatment and I-rail with precision grinding performs stable machine movement even in high speed cutting. Master is the professional model to satisfy all of your critical needs.
| Technical Specifications | ||||||
| Model | Unit | Master 20s/20 | Master 25s/25 | Master 30s/30 | Master 35s/35 | Master 40s/40 |
| Input Power | AC 220V, 50 / 60Hz, 3 phase | |||||
| Cutting width | mm | 1600 | 2100 | 2600 | 3100 | 3600 |
| Cutting speed | m/min | 8/12/16 | ||||
| Traveling speed | m/min | 12/16/24 | ||||
| Min. distance between 2 torches | mm | 100 | ||||
| Net Weight | Kg | 1230 | 1275 | 1330 | 1540 | 1600 |
| Technical Specifications | ||||||
| Model | Unit | Master 45 | Master 50 | Master 60 | Master 70 | Master 80 |
| Input Power | AC 220V, 50 / 60Hz, 3 phase | |||||
| Cutting width | mm | 4100 | 4600 | 5600 | 6600 | 7600 |
| Cutting speed | m/min | 8/12/16 | 12/16 | 8/12 | ||
| Traveling speed | m/min | 12/16/24 | 16/24 | 12/16 | ||
| Min. distance between 2 torches | mm | 100 | ||||
| Net Weight | Kg | 1660 | 2100 | 2200 | 2400 | 2550 |
