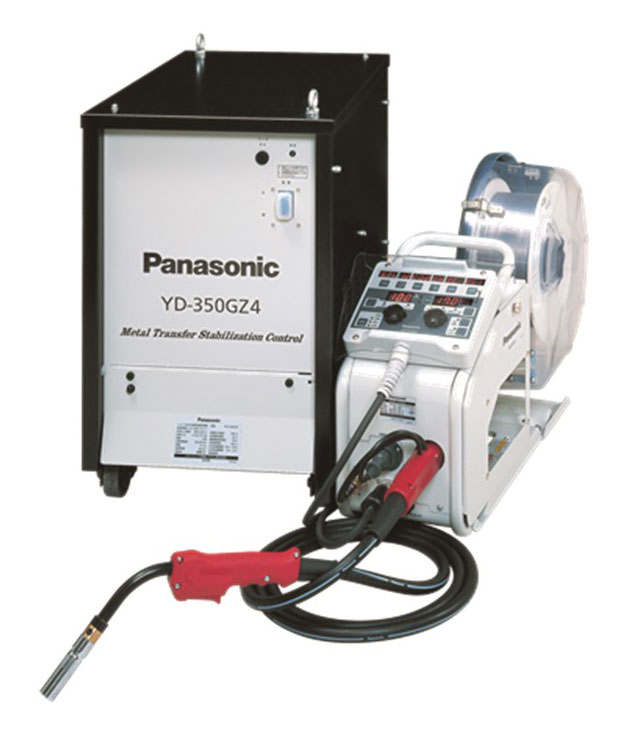

PANASONIC FULL DIGITAL CO2/MAG WELDING POWER SOURCE – MODEL: 350GZ4
Key feature of 350GZ4
– Reduced spatter
– Suited for high speed welding
– Preventing undercuts during high speed welding
– A waveform control that reduces spatter in MAG welding Equipped.
| Technical Specifications | ||
|---|---|---|
| Processes | CO2/MAG/MIG | |
| Input Power | 3 phase / 380/415 V / 50 - 60 Hz | |
| Rated Input Capacity | 17.7 kVA / 16 kW | |
| Rated Output | 30 - 350 A / 60% duty cycle | |
| Max.Open-Circuit Voltage | 78 VDC | |
| Wire Diameter | 0.8 - 1.2 mm | |
| Weight | 61 Kg | |
| Dimensions (W x D x H) | 380 x 550 x 640 mm | |
