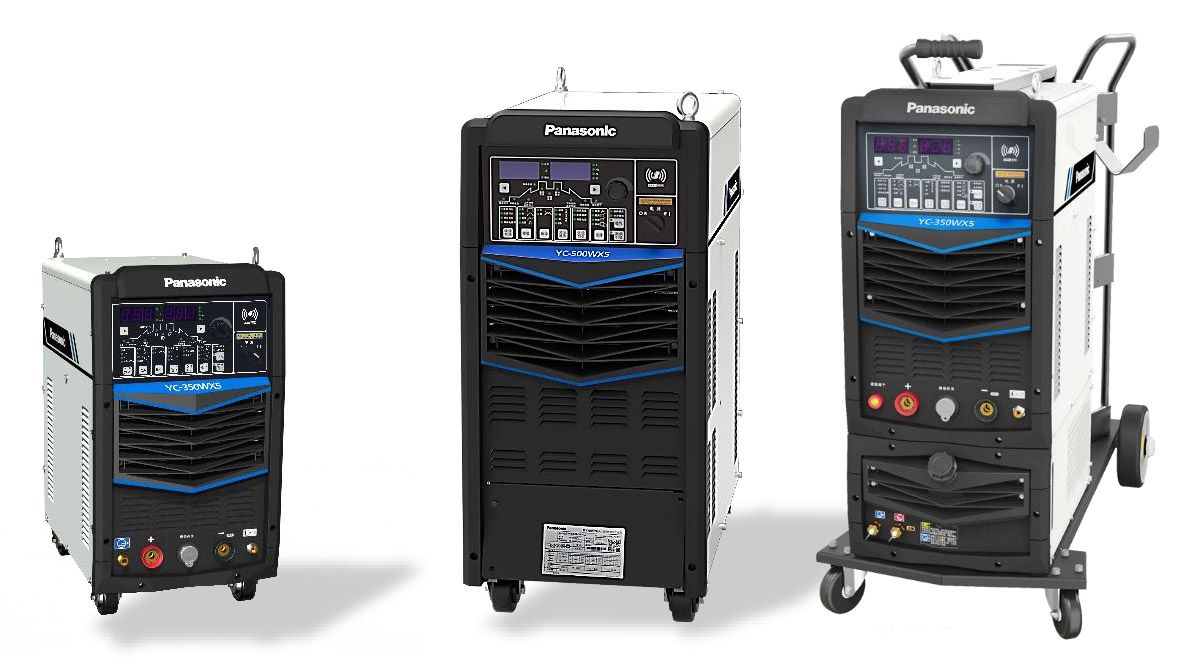

PANASONIC AC/DC TIG WELDING MACHINE – MODEL: WX5 SERIES
Features:
- High-quality aluminum welding
- AC TIG – WeldingModes
- Heat input well controlled by adjustingpulse parameters
- Instantaneous arc ignition
- The ideal appearance can be obtained by adjusting cleaning width
- Welding speed and penetration can be increased by adjusting bias current
- Full-range Adjustment on AC Output Frequency 30-100Hz
- DC/AC MMA Function
- Standard analog communication interface
- More Features
| Technical Specifications | ||
|---|---|---|
| Model | YC-350WX5HGY | YC-500WX5HGY |
| Rated input voltage | AC380/415V | AC380/415V |
| Number of phases | 3 | 3 |
| Input voltage range | 304 ~ 456 | 304 ~ 456 |
| Rated frequency | 50/60 Hz | 50/60 Hz |
| Rated input (kVA) (kVA) | 16.6 | 29.5 |
| Rated input (kW) | 13.5 | 22.5 |
| Rated No-Load Voltage | 62 V | 70 V |
Output current adjustable range (A) |
DC TIG: 4 ~ 350 | DC TIG: 5 ~ 500 |
| AC TIG: 10 ~ 350 | AC TIG: 20 ~ 500 | |
| STICK: 10 ~ 300 | STICK: 20 ~ 400 | |
Output voltage adjustable range (V) |
DC TIG: 10.2 ~ 24 | DC TIG: 10.2 ~ 30 |
| AC TIG: 10.4 ~ 24 | AC TIG: 10.8 ~ 30 | |
| STICK: 20.4 ~ 32 | STICK: 20.8 ~ 36 | |
| Rated Duty Cycle | 35% | 60% |
| Control method | IGBT inverter type | |
| Cooling method | Forced air-cooling | |
| High-frequency generator | Spark-oscillation type | |
| Weight (kg) | 74 | 128 |
| Dimension (W x D x H) (mm) | 560 x 380 x 730 | 730 x 380 x 875 |
PRODUCT POSITIONING:
- High end machine offering excellent quality welding suitable for various nonferrous materials
- An advanced model with abundant functions and outstanding performance especially designed for aluminum welding
- Digital control and communication anddigital panel for parameter adjustment and status display
- The remote controller, photosensitive pedal controller, IoT module,RFID card reader, RS485 and robot interfacesare extendable.
APPLICABLE METERIALS AND PLATE THICKNESSES
|
Welding methods |
Materials |
Thickness ranges |
|
AC TIG |
|
|
| DC TIG |
|
|
| MMAW |
|
|
