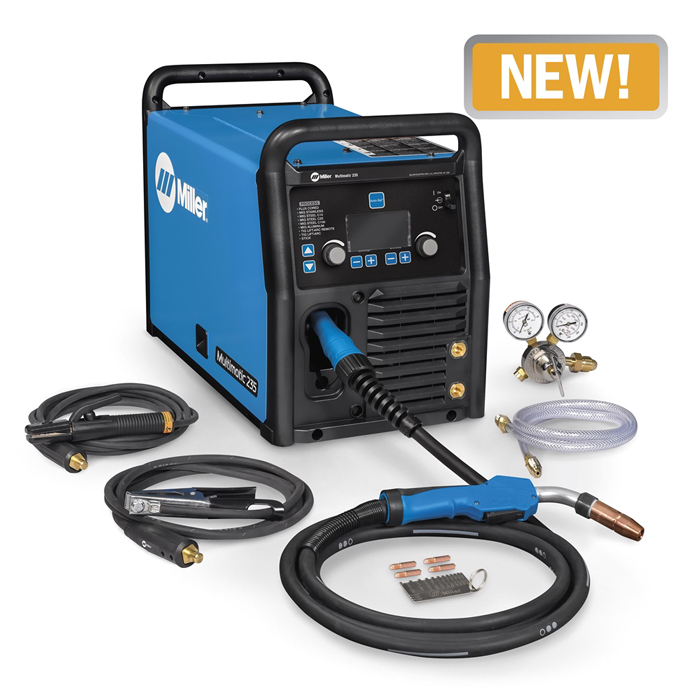

MULTIMATIC® 235 MULTIPROCESS MILLER WELDER
Industrial Applications
– Manufacturing and fabrication
– Plant maintenance shops
– Construction fabrication
– Education
| Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Flux-cored (FCAW) DC stick (SMAW) DC Lift-Arc™ TIG (GTAW) Pulsed TIG (GTAW-P) |
|
| Input Power | 240 V, single-phase | |
| Rated Output | MIG: 170 A at 22.5 V, 60% duty cycle Stick: 150 A at 26 V, 60% duty cycle TIG: 180 A at 17.2 V, 60% duty cycle |
|
| Amperage range | 20–235 A | |
| Wire Feed Speed | 60–600 ipm (1.3–20 m/min.) | |
| Max. Open-circuit Voltage | 54 VDC | |
| Net Weight | 29 Kg | |
| Dimensions (H x W x D) | 489 x 349 x 616 mm | |
Warranty: 3 years
