MAXSTAR® 161 TIG MILLER WELDING MACHINE
Light Industrial Applications:
– Process pipe
– Dairy industry
– Food/beverage industry
– Restaurant/kitchen repair
– Experimental aircraft
– Shipboard installation/repair
– Maintenance repair
| Technical Specifications | ||
|---|---|---|
| Processes |
Stick (SMAW) *STH model only. |
|
| Input Power | 240 V, 1-phase | |
| Amperage Range | 5–160 A (DC TIG) 20–160 A (DC stick) |
|
| Rated Output | DC TIG: 110 A at 14.4 VDC, 100% duty cycle 160 A at 16.4 VDC, 20% duty cycle DC Stick: 110 A at 24.4 VDC, 100% duty cycle 160 A at 26.4 VDC, 20% duty cycle |
|
| Max. Open-circuit Voltage | 48 V | |
| Net Weight | 5.9 Kg | |
| Dimensions (Hx W x D) | 262 x 142 x 343 mm | |

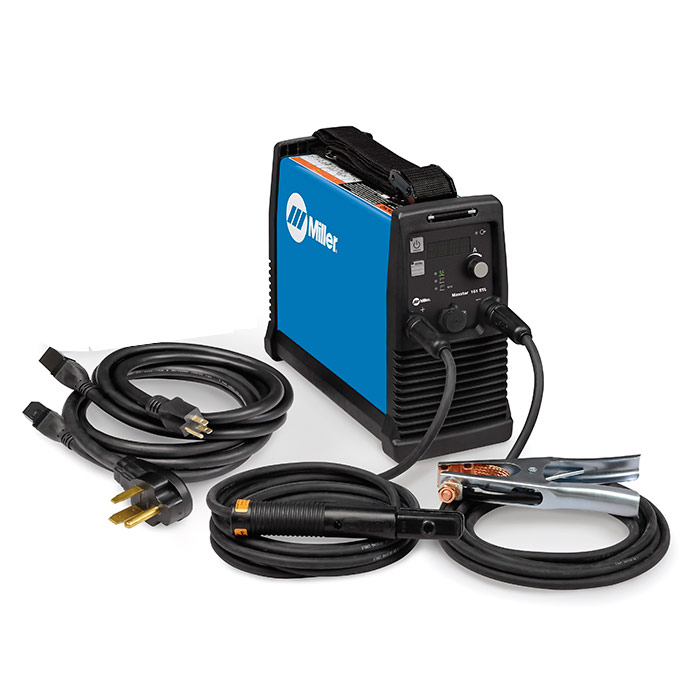

Packages include:
- Maxstar 161 power source
- 6.5 ft. (2 m) 120-volt and 240-volt power cords
- Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
- Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
- One air-cooled TIG torch connector (195234)
- Handle/shoulder strap
- Quick-reference guide
Warranted: three years
