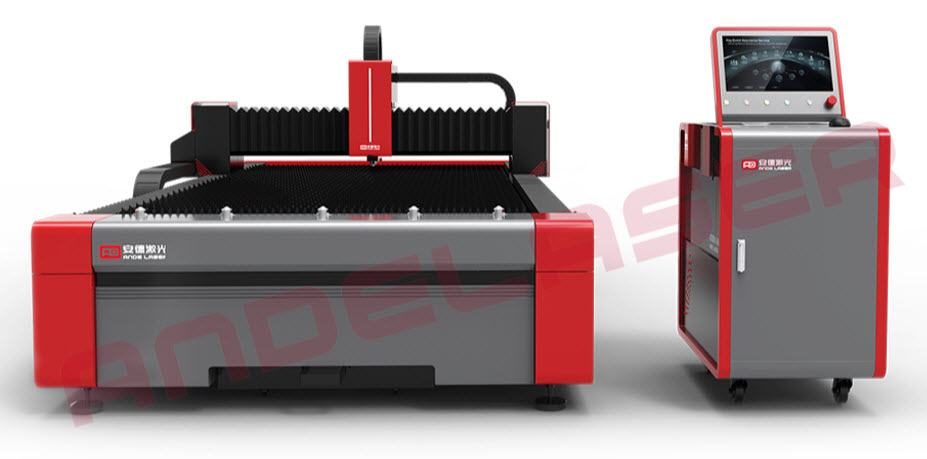

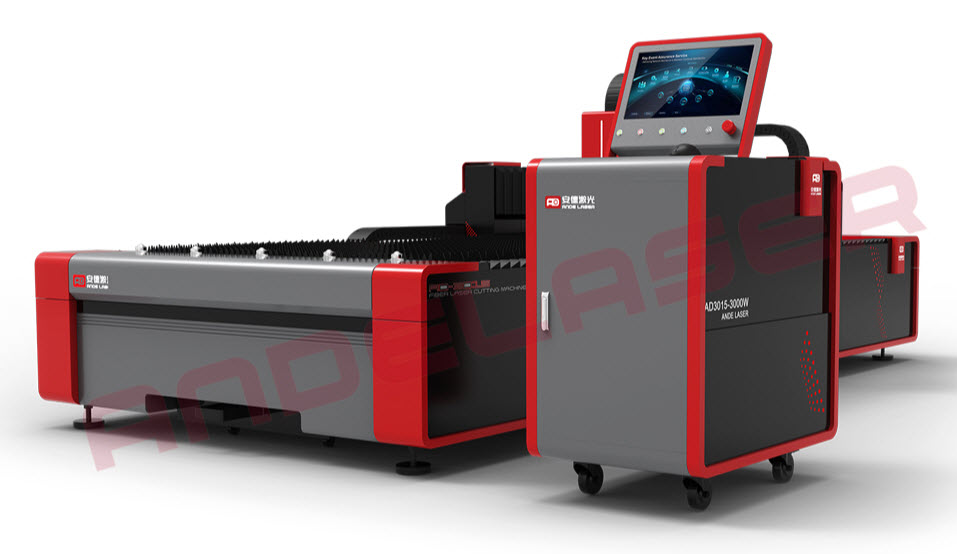

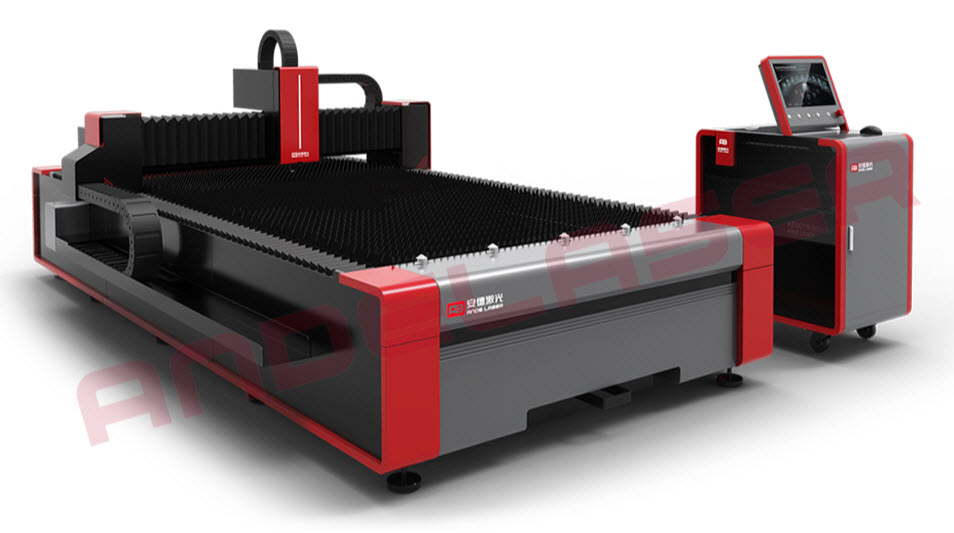

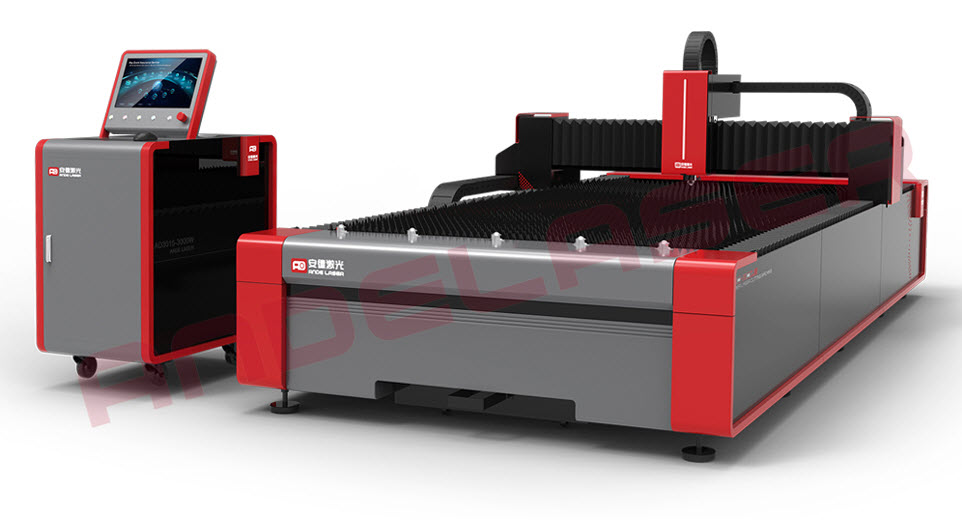

LASER CUTTING MACHINE – MODEL: AD3015E-3000W
– Working Size: 3000 mm x 1500 mm
– X-Axis Travel: 3020 mm
– Y-Axis Travel: 1520 mm
– Z-Axis Travel: 240 mm
– X/Y/Z Axis Position Accuracy: ±0.03 mm/m
– X/Y/Z Axis Re-position Accuracy: ±0.02mm/m
– Maximum Positioning Speed: 100 m/phút
– Peak Acceleration: 0.8 G
– Outside Size: 4600 mm * 2300 mm * 2200 mm
– Power Supply: AC 380V / 50Hz / ≤50KVA
– Protection Level of Total Power Supply: IP54
|
Components |
Technical Specifications |
|
Machine bed |
AD3015E |
|
Laser source |
Raycus 3000Watt |
|
CNC software |
Cypcut 3000 |
|
Servo motor |
FUJIFUJI FUJI (Japan) |
|
High precision reducer |
Shimpo (Japan) |
| Guide rail(X,Y-axis) | HIWIN (Taiwan) |
| Rack and pinion driving(X,Y-axis) | YYC (Taiwan) |
| Double temperature control cooling system | Hanli |
| Proportional valve | SMC (Japan) |
| Dust collecting tray | ANDE |
