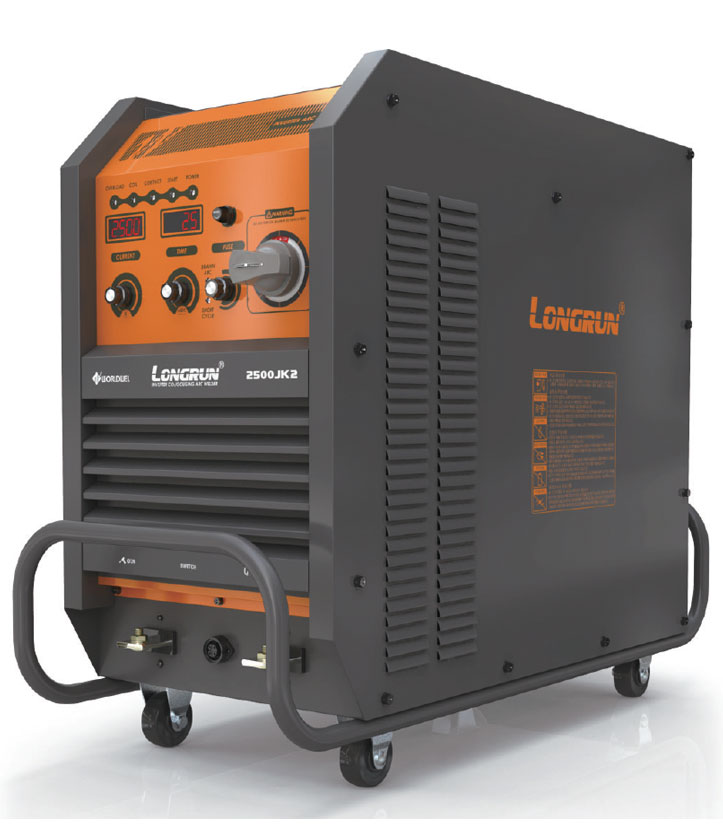

INVERTER STUD LONGRUN WELDING MACHINE – MODEL : 2500JK2
– Energy saving and high efficiency by IGBT Inverter control technology
– Able to weld the bolt, pin on metal instantly without drilling, punching and tapping
– High duty cycle by sufficient capacity of transformer with patent technology
– Easy to verify output current on duty by ammeter on front panel
– Incorruptible painting and qualified metal
Inverter Stud Welding Machine Model 2500JK2
| Technical Specifications | |
|
Input Power (V, PH) |
380/440, 3 phase |
| Input Capacity (KVA) | 180 |
| Stud range (Φ) | 6-25 |
| Current range (A) | 100~2500 |
| Weld time range (s) | 0.1~1.5 |
| Net Weight (Kg) | 120 |
| Dimensions (mm) | 380x920x740 |
- Best welding quality by IGBT Inverter control technology
- Energy saving and high efficiency
- Full digital function : Adjustable welding current and voltage
- Ideal for stud welding for seismic design
- Short cycle / Drawn ARC
- Stud diameter : 6 ~ 25mm
