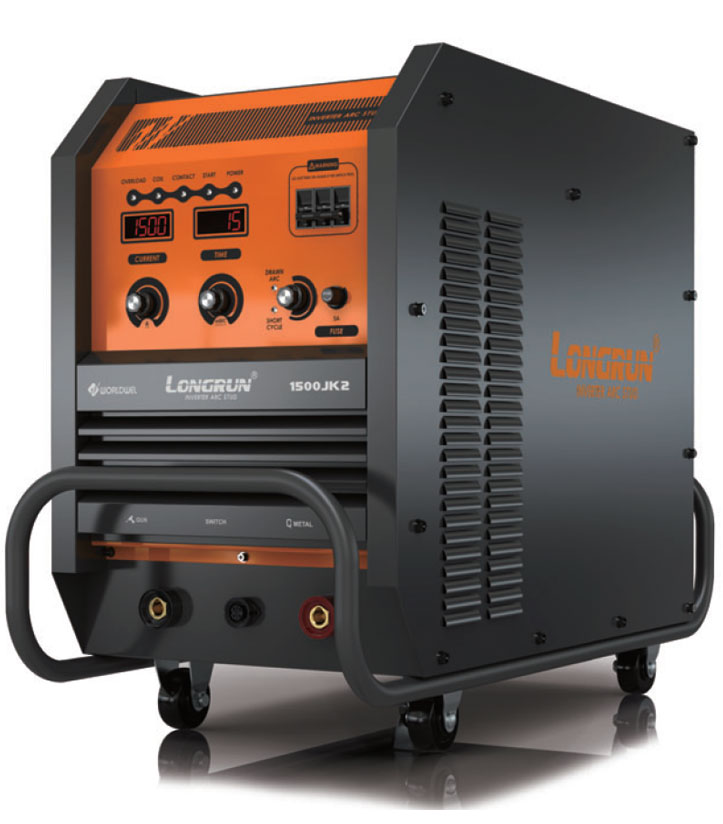

INVERTER STUD LONGRUN WELDING MACHINE – MODEL : 1500JK2
– Energy saving and high efficiency by IGBT Inverter control technology
– Able to weld the bolt, pin on metal instantly without drilling, punching and tapping
– High duty cycle by sufficient capacity of transformer with patent technology
– Easy to verify output current on duty by ammeter on front panel
– Incorruptible painting and qualified metal
Inverter Stud Welding Machine Model 1500JK2
| Technical Specifications | |
|
Input Power (V, PH) |
3 phase/ 380V/ 50-60Hz |
| Input Capacity(KVA) | 73 |
| Stud range (Φ) | 3~16 |
| Current rang (A) | 100~1500 |
| Weld time range(s) | 0.1~1.5 |
| Net Weight (Kg) | 77 |
| Dimensions (mm) | 385x890x610 |
Complete set with:
- Power source 1500A
- Short cycle stud welding gun 50mm2, 10M
- Earth clamp and cable 50mm2, 10M
- Best welding quality by IGBT Inverter control technology
- Energy saving and high efficiency
- Full digital function : Adjustable welding current and voltage
- Long-lasting power and stability with enough capacity
- Short cycle / Drawn ARC
- Stud diameter : 3 ~ 16 mm
