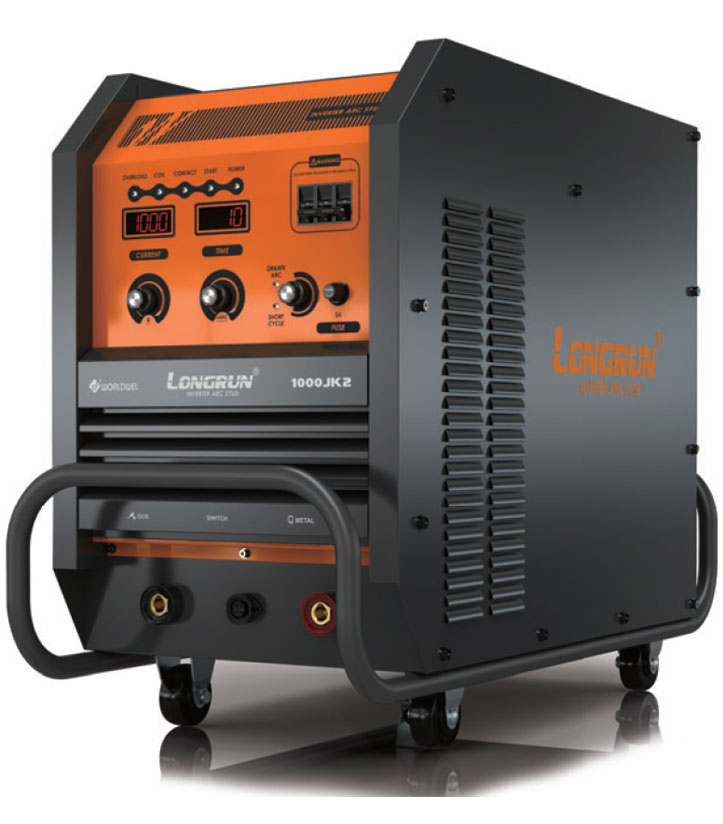

INVERTER STUD LONGRUN WELDING MACHINE – MODEL: 1000JK2
– Best welding quality by IGBT Inverter control technology
– Energy saving and high efficiency
– Full digital function : Adjustable welding current and voltage
– Long-lasting power and stability with enough capacity
– Short cycle / Drawn ARC
– Stud diameter : 3~12mm (1000JK2), 3~16mm (1500JK2)
| Technical Specifications | |
|
Input Power (V, PH) |
380/440, 3 phase |
| Input Capacity (KVA) | 35 |
| Stud Range (Φ) | 3~12 |
| Current Range (A) | 100~1000 |
| Weld Time Range (s) | 0.1~1.5 |
| Weight (Kg) | 69 |
| Dimensions (mm) | 385 x 890 x 610 |
INVERTER STUD WELDING MACHINE - MODEL: 1000JK2
Feature:
- Energy saving and high efficiency by IGBT Inverter control technology
- Able to weld the bolt, pin on metal instantly without drilling, punching and tapping
- High duty cycle by sufficient capacity of transformer with patent technology
- Easy to verify output current on duty by ammeter on front panel
- Incorruptible painting and qualified metal
