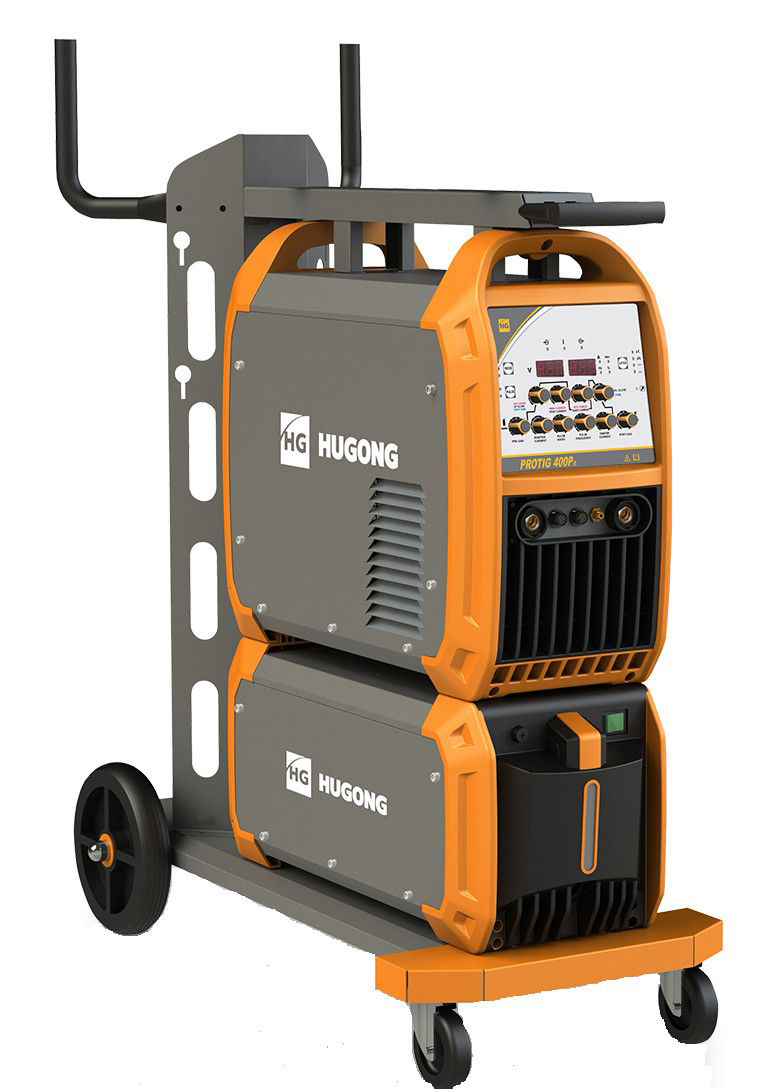

HUGONG DC TIG PROTIG 400P III
●On trolley Water Cooled Inverter DC HF TIG / MMA Welder With Pulse
●Compact, Heavy Duty, Industrial Type with easy moving and storage
●New Generation advanced IGBT Inverter Technology.
●Pulse TIG; provides minimized heat input and faster freezes weld puddle that gives perfect welding solutions even on thin materials with perfect bead appearance.
●Ideal for welding of carbon steels, low-alloy steels ,stainless steels.
●Digital ampermeter / voltmeter
●Power, Overload and Under/Over-Voltage LED indicators
●Equipped with voltage protection and thermal protection
HUGONG DC TIG PROTIG 400P III
| Technical Specifications | |
| Input Power (V) |
3 phase/ 400V/ 50-60Hz |
| Rated Input Current (A) | 26 |
| Rate Input Capacity (kVA) | 18.1 |
| Welding Current Adjustment Range (A) | TIG20-400/MMA25-350 |
| Rated Open-circuit Voltage (V) | 73 |
| Rated Output | 60%@400 |
| Net Weight (kg) | 38 |
| Dimensions LxWxH (mm) | 719 x 308 x 633 |
Complete set with:
- WP-18 HG brand water cooled TIG torch with 2 pins hole socket, 4M
- AK4 accessories.
- Ground cable 40mm2 with 500A earch clamp, 3M and KJ35-70 quick connector
- Gas hose Φ 8mm, 4M
- Water cooler
