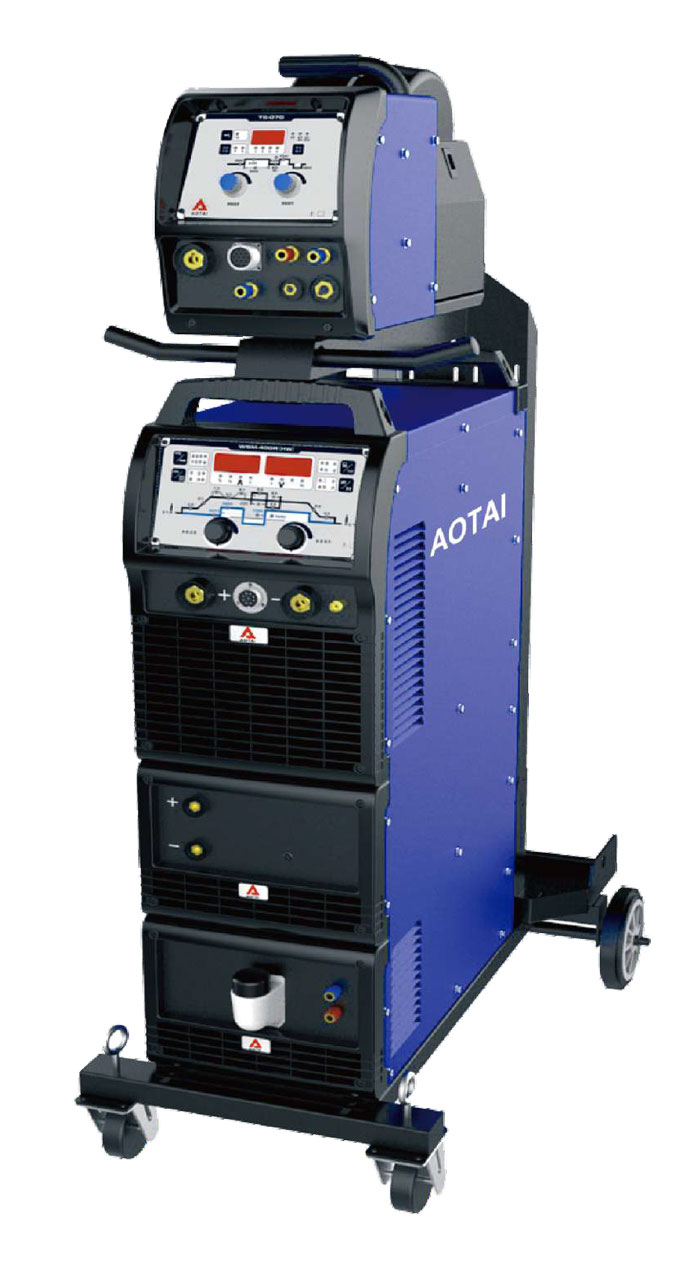

HOT WIRE TIG ATIG-400 AOTAI WELDING MACHINE
Applications:
– Bicycle, fitness equipment, stainless furniture
– Maintenance and repair
– Industry plant construction
– Containers manufacture
– Shipbuilding
– Pipeline industry
| Technical Specifications | ||
|---|---|---|
| Processes | DC TIG(GTAW) /STICK(SMAW )/ DC PULSED TIG (GTAW-P) |
|
| Input Power | 380 V, 3-phase | |
| Amperage Range | 60%@400A/500A | |
| Rated Input Current | 28 /37.5 Amps | |
| Adjustable current range | 5~400A | |
| Weight | 55 Kg | |
| Dimensions (Hx W x D) | 660 x 330 x 580 mm | |
Welding power source 400A
Hot wire power source 200A
Water cooled wire feeder with 10m cable
3 Phase/380V/50Hz
Complete set with:
- Hot wire water cooled TIG torch L=3m (straight type)
- Ground cable with quick plug L=3m (for welding power
source)
- Ground cable with quick plug L=3m (for hot wire power
source)
- Water cooling machine
- Trolley
Warranted: 1 year
