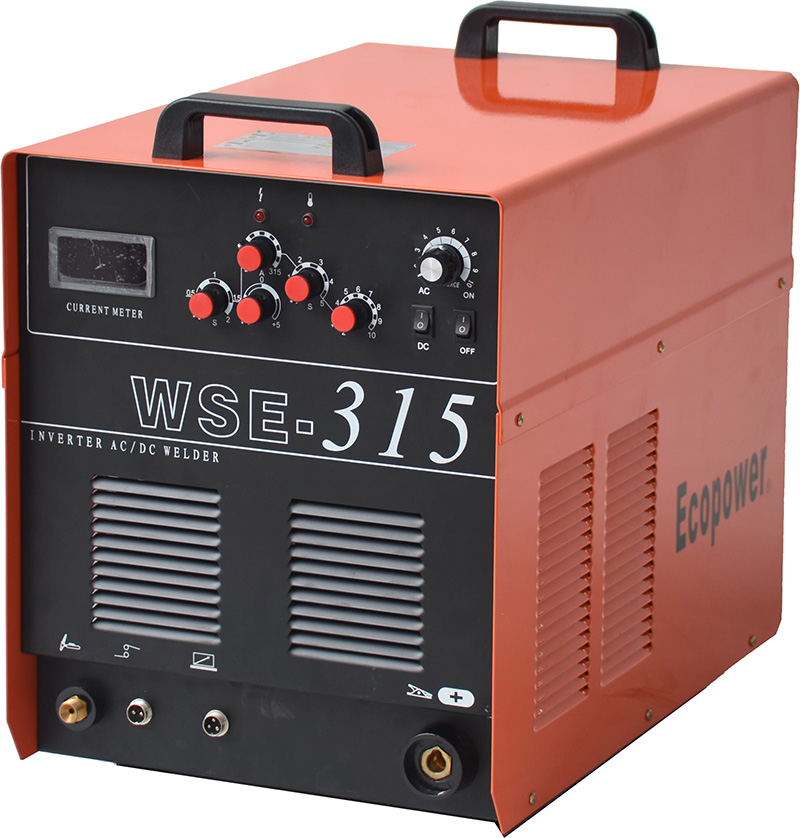

ECOPOWER AC/DC TIG WELDING MACHINE – MODEL: WSE-315
- Excellent square wave power, short time for current zero crossing and, stable arc without high frequency.
- Good arc stiffness, concentrated heat, easy for wire filling especially for the wire filling welding in the bicycle industry.
- Super strong oxide coating cleaning, continuously adjustable cleaning width and bright and beautyful welding.
- The interface with the pedal convenient for operate.
- Assembled with over- flowing, overpressure circuit, easy to operate.
- High load rated without stop in continuous work with large current.
- Available for welding aluminum and aluminum alloy, carbon steel, stainless steel, copper and titanium…
ECOPOWER AC/DC TIG WELDING MACHINE - MODEL: WSE-315
| Technical Specifications | |
|
Input Power(V, PH) |
3 phase/ 380V/ 50Hz |
| Rated Input Capacity (KVA) | 9 |
| Open-circuit Voltage (V) | 45 |
| Output Current(A) | 20-315 |
| Duty cycle (%) | 60 |
| Dimensions (mm) | 685 x 445 x 530 |
| Net Weight (Kg) | 35 |
Complete set with:
- TIG torch TIG QQ200, 4M
- Earth clamp and cable, 3M
