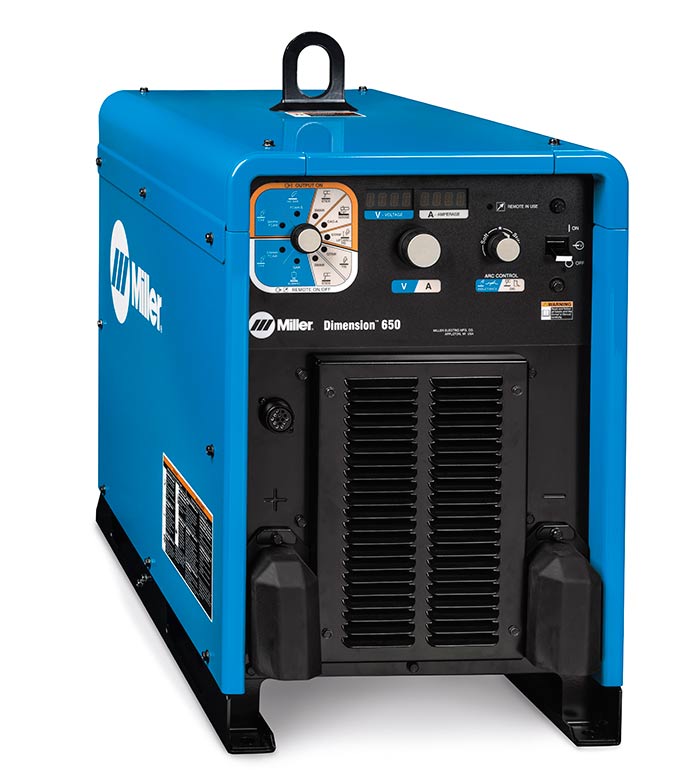

DIMENSION 650 MULTIPROCESS MILLER WELDER
Heavy Industrial Applications
– Fabrication and construction
– Heavy manufacturing
– MRO — maintenance/repair
– Pressure tank/vessel fabrication
– Shipbuilding
– Refineries and foundries
– Railcar manufacturing
– Earth-moving equipment manufacturing
| Developed for harsh environmental conditions and output requirements that range from power-intensive to precise. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Flux-cored (FCAW) Submerged arc (SAW) Stick (SMAW) TIG (GTAW) Air carbon arc (CAC-A) cutting and gouging Rated: 3/8-inch carbons |
|
| Input Power | 3-phase; 380/460 V, 50/60 Hz | |
| Rated Output | 650 A at 44 VDC, 100% duty cycle | |
| Amperage Range | 15–815 A, 10–65 V | |
| Max. Open-circuit Voltage | 87 VDC | |
| Net Weight | 71.7 Kg | |
| Dimensions (H x W x D) | 716 x 424 x 803 mm | |
Warranty: 3 years
