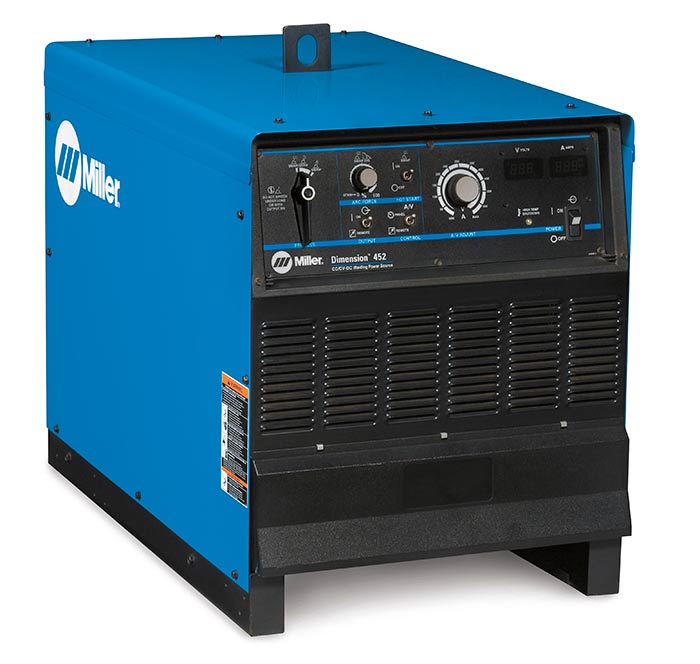

DIMENSION 452 200-208/230/460V MULTIPROCESS MILLER WELDER
Heavy Industrial Applications
– Fabrication and construction
– Heavy manufacturing
– MRO — maintenance/repair
– Pressure tank/vessel fabrication
– Pipe welding
– Shipbuilding
– Refineries and foundries
– Railcar manufacturing
– Earth-moving equipment manufacturing
| Designed for heavy industrial welding applications, with 100 percent duty cycle for extended arc-on time. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Stick (SMAW) TIG (GTAW) Flux-cored (FCAW) Air carbon arc (CAC-A) cutting and gouging Submerged arc (SAW) |
|
| Input Power | 3 phase | |
| Amperage Range | CC: 20–565 A CV: 10–38 V |
|
| Rated Output | 450 A at 38 VDC, 100% duty cycle | |
| Max. Open-circuit Voltage | CC: 65 VDC CV: 43 VDC |
|
| Net Weight | 192 Kg | |
| Dimensions (H x W x D) | 762 x 585 x 966 mm | |
Warranty: 3 years
