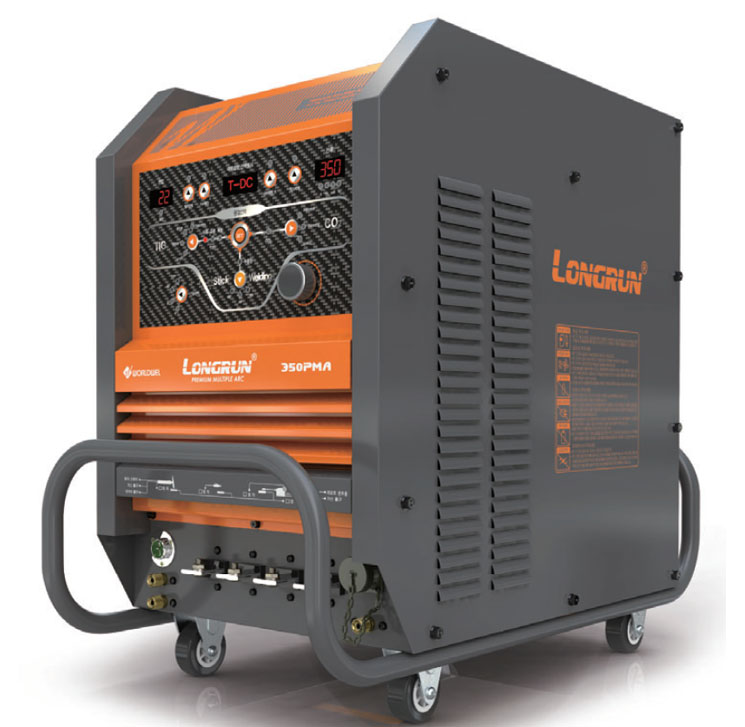

DIGITAL MULTI PROCESS WELDING MACHINE 350PMA
- Multi Process Welding (TIG-AC/DC, MIG/MAG, STICK-AC/DC)
- Full digital control and user friendly interface
- All welding process is possible after one installation
- Optimized for educational purpose at Welding Institution
| Technical Specifications | ||||||
|
Input power (V, PH) |
220, 1/3 phase | 380, 1/3 phase | ||||
| Function | AC/DC Tig | CO2/Mag | Stick | AC/DC Tig | CO2/Mag | Stick |
| Input capacity (KVA) | 11 | 18 | 15 | 10 | 17 | 14 |
| Open circuit voltage (V) | 72 | 70 | 81 | 68 | 67 | 71 |
| Output current (A) | 10~350 | 50~350 | 10~350 | 10~350 | 50~350 | 10~350 |
| Duty cycle (%) | 60 | |||||
| Dimension (mm) | 416 x 694 x 788 | |||||
| Weight (Kg) | 83 | |||||
