CST-282, 208-575V, TWECO

Industrial Applications
– Power plant construction
– Petrochemical construction
– Maintenance and repair
– Shipbuilding

SKU: 907770 Category: Brand:

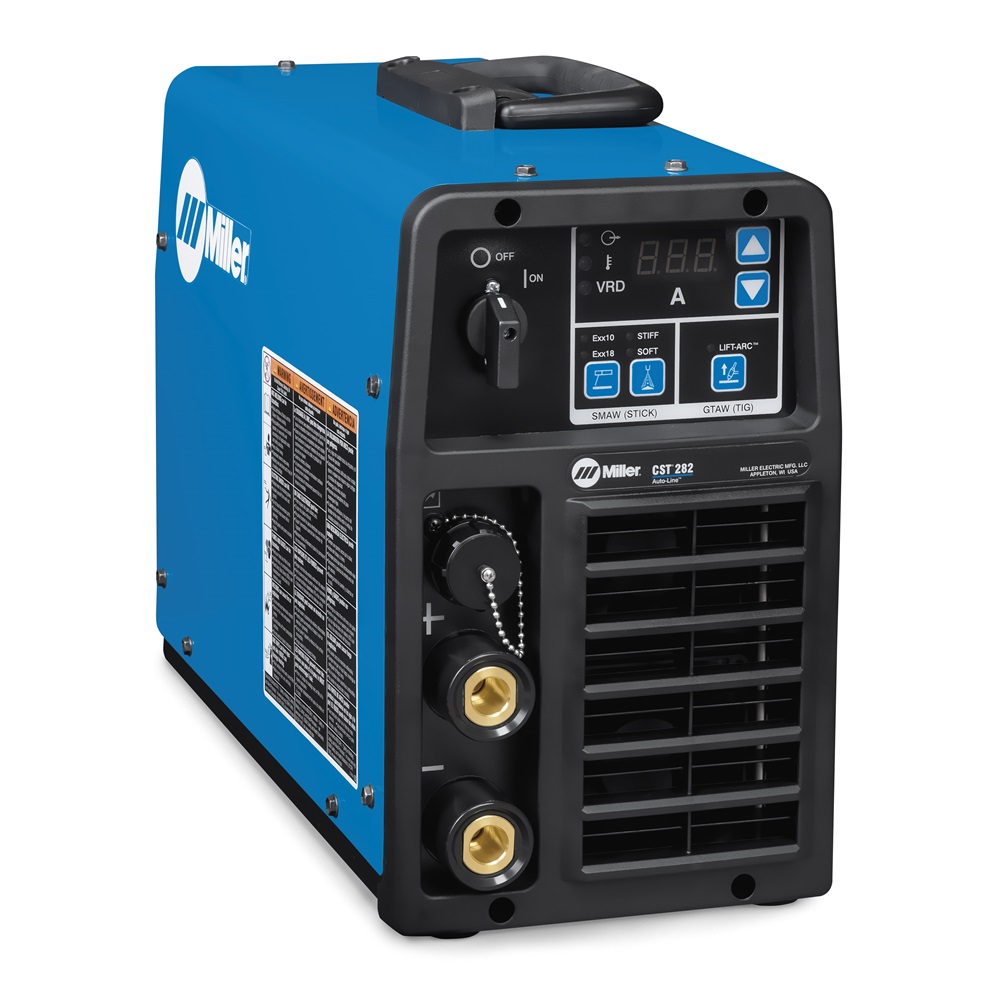

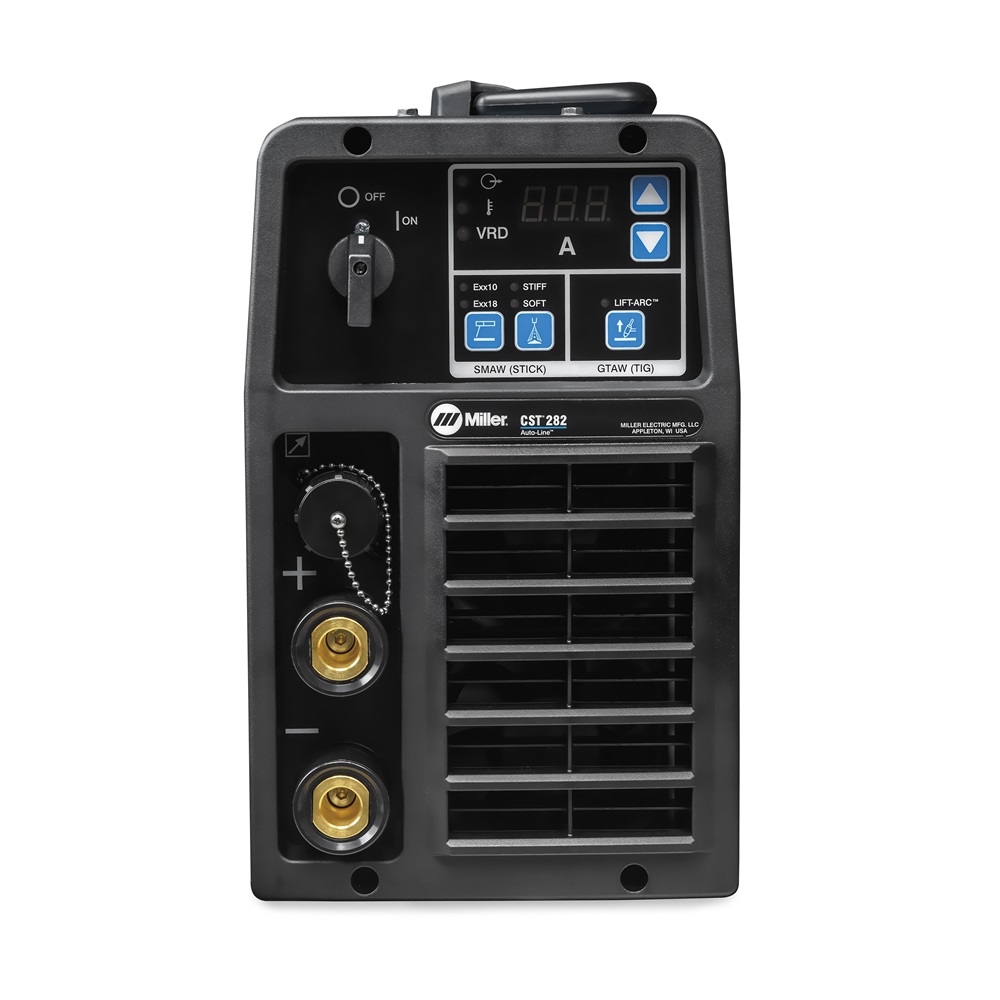

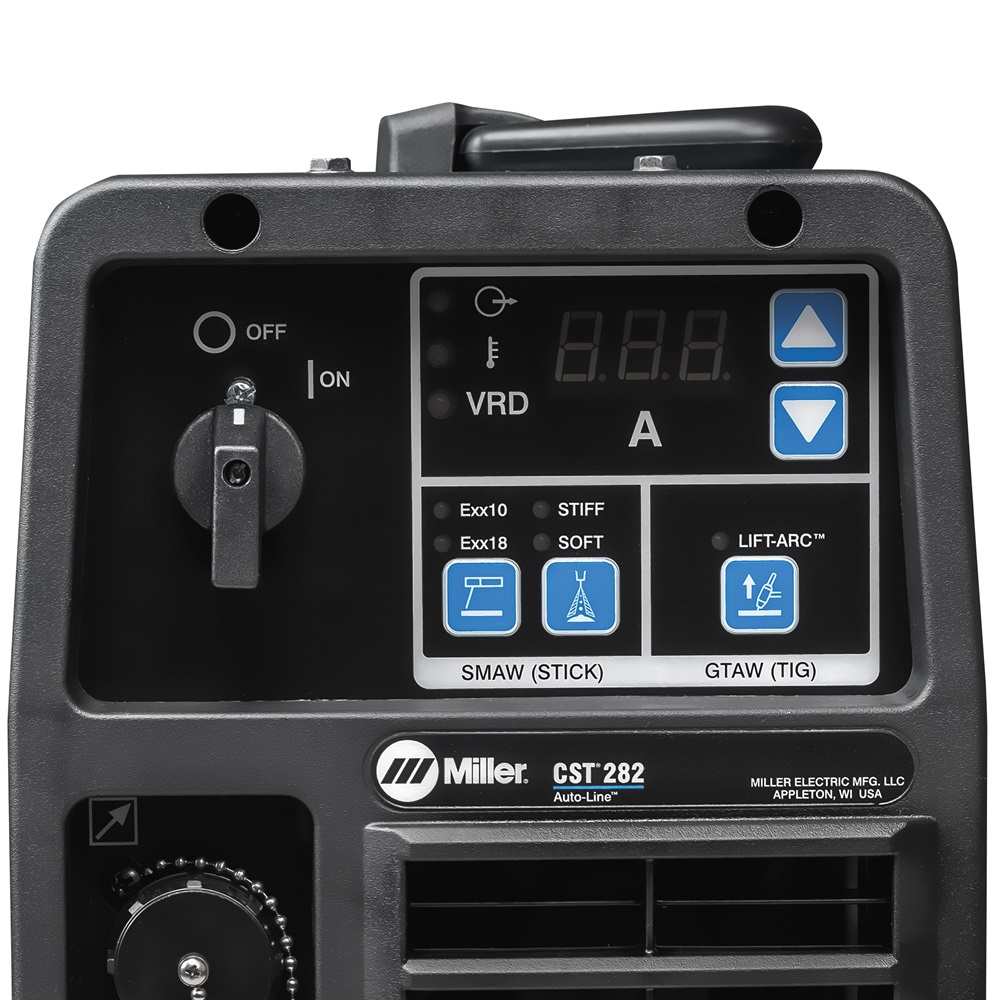

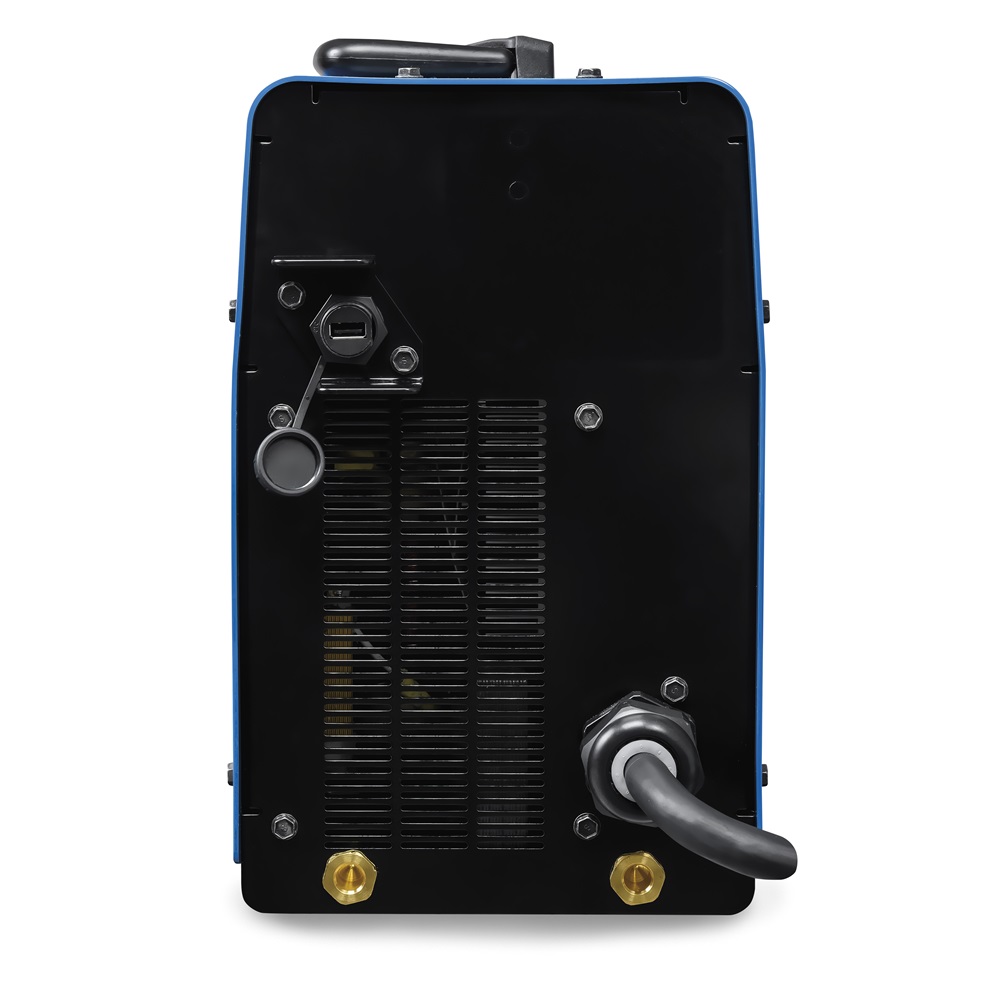

CST™ 282 208-575V, Tweco

Technical Specifications
Processes

Stick (SMAW)
TIG (GTAW) Lift-Arc™
Input Power Requires 3- or 1-phase
Amperage Range TIG: 5 – 280 A
Stick: 30 – 280 A
Rated Output STICK:
3 phase:
- 280 A at 31.2 VDC, 35% duty cycle
- 200 A at 28 VDC, 100% duty cycle
1 phase:
- 200 A at 28 VDC, 50% duty cycle
- 150 A at 26 VDC, 100% duty cycle
TIG:
3 phase:
- 280 A t 21.2 VDC, 35% duty cycle
- 200 A at 18 VDC, 100% duty cycle
1 phase:
- 200 A at 18 VDC, 50% duty cycle
- 150 A at 16 VDC, 100% duty cycle
Max. Open-Circuit Voltage 103 VDC
Net Weight 15.7 Kg
Dimensions (H x W x D) 343 x 203 x 470 mm

Warrantied: 3 years
