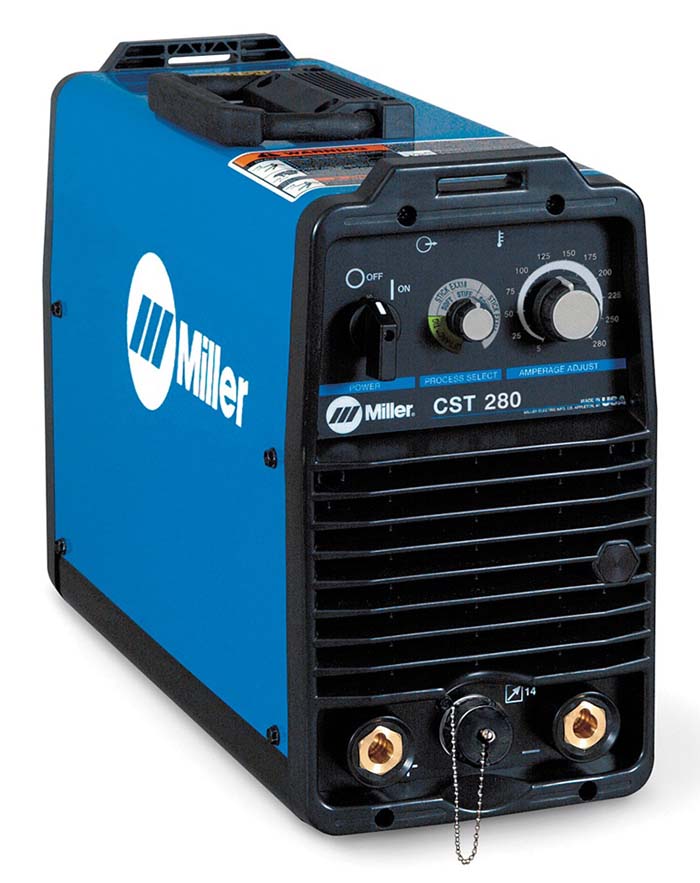

CST-280, 220-230/460-575, TWECO STYLE CONNECTORS
Industrial Applications
– Power plant construction
– Petrochemical construction
– Maintenance and repair
– Shipbuilding
CST-280, 220-230/460-575, TWECO STYLE CONNECTORS
| Technical Specifications | ||
|---|---|---|
| Processes |
Stick (SMAW) |
|
| Input Power | Requires 3- or 1-phase | |
| Amperage Range | TIG: 5 – 280 A Stick: 30 – 280 A |
|
| Rated Output | 3 phase: STICK: 280 A at 31.2 VDC, 35% duty cycle TIG: 200 A at 28 VDC, 100% duty cycle 1 phase: STICK: 200 A at 28 VDC, 50% duty cycle TIG: 150 A at 26 VDC, 100% duty cycle |
|
| Max. Open-Circuit Voltage | 77 VDC | |
| Net Weight | 18.6 Kg | |
| Dimensions (H x W x D) | 343 x 191 x 457 mm | |
Warrantied: 3 years
