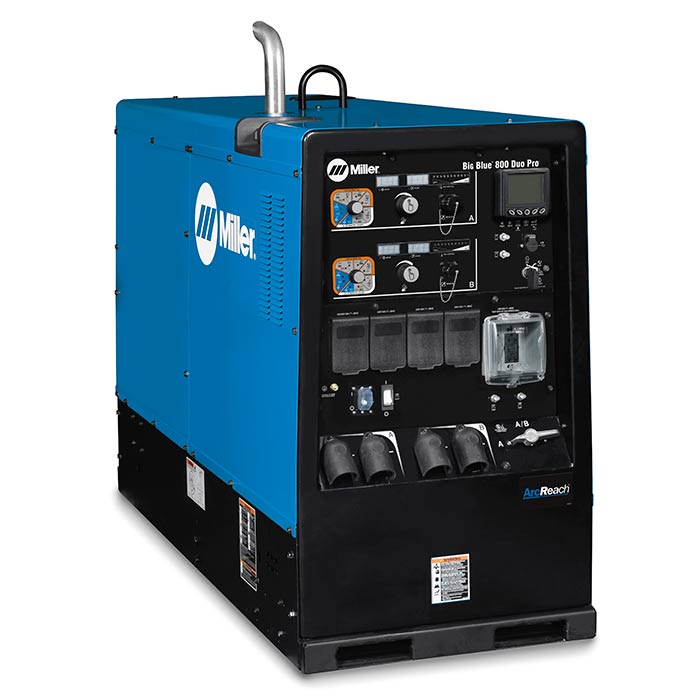

BIG BLUE 800 DUO PRO ENGINE DRIVING WELDER
BIG BLUE 800 DUO PRO ENGINE DRIVING WELDER - Image 2

BIG BLUE 800 DUO PRO ENGINE DRIVING WELDER

Heavy Industrial Applications
– Pipe welding
– Maintenance and repair rigs
– Mechanical contractor
– Construction
– Mining maintenance
– Railroad maintenance

SKU: 907751 Category: Brand:
The most powerful T4F diesel welder/generator in the industry. The Big Blue 800 Duo Pro offers robust output for welding and power generation, and is ideal for dual-operator applications on labor intensive jobsites, or jobsites with limited space. Equipped with ArcReach® technology, operators can change weld settings from the ArcReach feeder or remote. RMD® & Pulsed MIG welding capabilities are added with the ArcReach Smart Feeder.

Mô tả đặc tính kỹ thuật
Processes

Stick (SMAW)
MIG (GMAW)*
Flux-cored (FCAW)*
RMD®**
Pulsed MIG (GMAW-P)**
DC TIG (GTAW)
Submerged arc (SAW)
Stud welding — 1/2 inch (13 mm)
Air carbon arc (CAC-A)
1/2-inch (13 mm) carbons
Output Range Single weld mode CC: 40–800 A, CV: 15–50 V
Dual weld mode CC: 20–400 A, CV: 15–50 V
Rate Output Single weld mode: CC:700 A at 44 V*; 800 A at 38 V
                                  CV: 750 A at 40 V*; 800 A at 38 V
Dual weld mode: CC: 400 A at 36 V*; CV: 400 A at 34 V*
Max. OpenCircuit Voltage 85 VDC
Net Weight 847.8 Kg
Dimensions (H x W x D) 1168 x 724 x 1765 mm

Warrantied: 3 years
